protect your application's bacon with rls

April 21, 2019
bacon time bacon. though delicious, completely irrelevant to this post.

securing web applications is hard. developers must consider a diverse set of risks when delivering systems that handle sensitive data. a cursory glance over the owasp top 10 reveals that securing a system is not a matter of "installing this" or "turning this feature on." rather, securing an application involves auditing and evaluating design patterns, which is often difficult due to lack of process formalities. row-level security (rls) is just one design pattern that can improve part of an application's data-security story. we'll explore how.

it's easy to fail at security.

really easy.

we haven't made our technical lives much easier on some of these fronts. let's focus on just one of the OWASP risks, broken access control. two of the many possible side-effects of bad access control is exposure of data and undesired mutation of data. historically, software engineering teams have:

  • protected against these risks at the application level, not at the data level
  • tested data security manually, not via automation

bummer. so what does bad access control look like in practice? here are some potential snippets:

router.route("/api/person?fields=birthday", handler)
# ^ whoops, can anyone query everyone's birthday?
# what about authentication?

@authenticated(roles="member")
router.route("/api/person?fields=birthday", handler)
# ^ whoops, this may limit who can access the
# data to memebers only, but did enforcing
# authentication fix the risk of over-exposure?
# what about authorization?

# handler.py - option 1
def handler():
  return psycopg.query("select birthday from persons")
  # ^ whoops, we're still exposing everyone's
  # birthday, even if the user is an authenticated
  # member. authorization needs a where clause

in just a few lines of code, we saw a variety of naive places were developers may have easily over exposed data. it's worth noting that there are--more commonly than not--layers in our applications, large call stacks separating our entrypoints from our data resolvers. this gap often makes validation of the resultant queries difficult. the @authenticated decorator could feasibly give a false positive to junior developers, implying that this data flow is "secure", when--as discussed before--there is much more to securing a service than meets the eye.

this example is purely hypothetical, and more simple than compelling for what comes next. make no mistake though, as it appears that these types of security leaks are rampant on the open web. we found a simiar leak at the office last month from a team of expert and respected engineers.

broken access control is challenging and real.

rls to the rescue

rls let's you protect your data records within the db. until recently, database access models did not support access constraints at the record level. access constraints were generally available on higher level primitives. this means that you could set RBAC roles for a query, but if a user was querying say the persons tables, she'd have access to all persons, which is problematic as demonstrated in our above snippets.

"so is row-level security is going to save the day?"

yup, pretty much. what i'm hear to say is that rls is a really good idea, and you ought at least consider it at design time if you own a data layer.

if i can get you to click this postgres rls link and expose you to the concept, that alone is a big win.

rls in practice

let's walk through an example. you can also complete this exercise whilst following along with the super-commerce codebase. feel free to clone it down, execute it, and tinker as we read through it below.

here's the plan. we will:

  1. create tables to hold application data, using postresql
  2. protect the sensitive data using rls
  3. create some seed data and load everything into a database
  4. test that rls is working per expectation and reflect on our design
  5. write a tiny application that integrates with the db just for kicks

create tables

our app will have customers that can make purchases of items from a store.

create table items (
  id serial unique,
  name varchar
);
create table customers (
  id serial unique,
  first_name varchar
);
create table purchases (
  id serial,
  item_id int  not null references items (id),
  customer_id int  not null references customers (id)
);

postgres=# \d purchases
                               Table "public.purchases"
   Column    |  Type   | Collation | Nullable |                Default
-------------+---------+-----------+----------+---------------------------------------
 id          | integer |           | not null | nextval('purchases_id_seq'::regclass)
 item_id     | integer |           | not null |
 customer_id | integer |           | not null |
Foreign-key constraints:
    "purchases_customer_id_fkey" FOREIGN KEY (customer_id) REFERENCES customers(id)
    "purchases_item_id_fkey" FOREIGN KEY (item_id) REFERENCES items(id)

all looks correct!

protect sensitive data

it's ok for anyone to query all of the items in the database. the more they see the better! our store wants people to be able to buy everything! however,

  • a customer should only be able to view her customer data, but no one elses' customer records
  • a customer should only be able to view his purchases, but no one elses' purchase records

thus, let us apply rls on those two tables:

-- we 1st need a non-super-user role for our app
create user commerce;

-- the following statements are the core of what
-- we need to have rock solid, high perf rls!
alter table customers enable row level security;
alter table purchases enable row level security;

create policy customers_crud on customers
	using (id = get_commerce_user_id());
  -- allow the customer to read and update her record.
  -- in our demo, the commerce_user_id is passed into
  -- the query context via postgres config.
  -- more on that later!

create policy purchases_crud on purchases
	using (customer_id = get_commerce_user_id() or is_admin())
	with check (is_admin());
  -- allow the customer to read his purchase records,
  -- but only allow an admins to edit/create records.
  -- @warn - `is_admin` is in the using clause as well because
  -- `insert ... returns` sql statements get checked
  -- with `with check` _and_ `using` conditions!

in a nutshell, one must:

  • enable rls for a table
  • create a policy with conditionals, dictating if a record is included in the query set
    • for select query inclusion, the using(...) conditional must yield true
    • for update/insert permissions, the with check(...) conditional must yield true

in truth, rls policies aren't quite as simple as that, but that's 80% of what you need to know!

you may have noticed that my conditionals referenced a couple of pgplsql functions. the two functions, is_admin() and get_commerce_user_id(), may be viewed in the appendix at the end of the post. omitted for brevity.

-- finally make sure our user can access our tables/fns/etc.
-- this is standard database bootstrapping stuff.
grant all on all tables in schema public to commerce;
grant all on all sequences in schema public to commerce;
grant execute on all functions in schema public to commerce;
revoke update (id) on table customers from public;
revoke update (id) on table items from public;
revoke update (id) on table purchases from public;

seed the database

insert into items (name) values
  ('nintendo64'),
  ('pizza'),
  ('cacao-nibs'),
  ('fancy-water');

insert into customers (first_name) values
  ('c-bear'),
  ('jamal'),
  ('jessica'),
  ('chaz');

insert into purchases (customer_id, item_id) values
  (1, 4),
  (1, 2), -- now that's a meal, c-bear! pizza & la croix. #hipster
  (2, 1), -- mario 64, great game. enjoy, jamal!
  (3, 3), -- tasty nibs for jessica
  (4, 3); -- tasty nibs for chaz
 c bear c-bear, great guy

test it out & reflect on our design

now that we have data loaded in, let's test if rls is really protecting our datas. let's log into the database with our non-super role:

$ psql --host localhost -p 5432 --username=commerce postgres

now, let's try and access all of the records in each table:

postgres=> select * from customers;
 id | first_name
----+------------
(0 rows)

postgres=> select * from purchases;
 id | item_id | customer_id
----+---------+-------------
(0 rows)

postgres=> select * from items;
 id |    name
----+-------------
  1 | nintendo64
  2 | pizza
  3 | cacao-nibs
  4 | fancy-water
(4 rows)

good! we see items, but because the transaction has no user_id set, the rls protected customers & purchases queries yielded no resuts.

what if we set a user_id and run our queries again with the user c-bear configured? i know c-bear has id === 1 just by inference based on seed data insert order. more commonly, a user id would be provided by an identity provider, auth service, oauth thingy, jwt, or perhaps even provided by the same database. for the purposes of demonstration, it doesn't matter where the user_id comes from--it just matters that all parts of the application/system have a common way to reference users.

postgres=> select set_config('commerce.user_id', '1', false);
 set_config
------------
 1
(1 row)

postgres=> select * from purchases;
 id | item_id | customer_id
----+---------+-------------
  1 |       4 |           1 -- c-bear's fancy-water
  2 |       2 |           1 -- c-bear's pizza
(2 rows)

postgres=> select * from customers;
 id | first_name
----+------------
  1 | c-bear
(1 row)

this is awesome! now we see records that belong just to c-bear.

to summarize, by default, we saw that our queries yielded no data. safety first! once we specified the user as c-bear, we saw only his data. we observed the rls policies active in all queries. we saw no data leak through for jamal, jessica, or chaz anywhere, anytime. what's also great about this approach is that we don't have to write carefully crafted sql to get specific user datas. i just wrote a basic select * from <table> and i got a reduced, user-centric set. we probably should write it for performance reasons (e.g. wire in effective where clauses), but we don't need to.

now, how do i feel about the design?

this access model is robust. application code simply needs to provide a user and the db handles the rest. there's no risky application control flows dictating resultant data sets--just flat conditionals at the record level. i concede that it is feasible to mess up configuring rls policies to begin with. i argue, however, that if culturally a team sets a precedence that data is secured at the database level, it's intuitive for engineers to see & expect policies in migrations and in table defintions. further, policies intrinsically tend to be much more robust than application code. policies are often type-checked, cross-referenced against database columns at migration time, and have very little logic. thus, engineers have some positive data points suggesting robustness is achieved.

auditing table policies is also much easier than auditing application code for security patterns. policies may be reviewed by simply scanning a table+policy list. auditing application code takes creativity and control flow traversals--sounds hard!

let's make an app!

we did a bunch of great work in the database. does it pay dividends in application code? you know it does!

here's the plan. we will:

  1. make a commerce server application that consumes our database. i used typescript & nodejs for this.
  2. use koa to bootstrap the server and handle requests
  3. use postgraphile server middleware to connect our server to the database, and reflect back a graphql api
    1. postgraphile will add /graphql and /graphiql routes to the app
      1. now we have many queries (i.e. selects) and mutations (i.e. insert/updates) ready to roll from the server
    2. we will wire in a feature called pgSettings, which ultimately calls postgres' set_config(...) function for all of our rls key-values for each query!
  4. start the server and play around

the app is so small, here's the whole thing:

import Koa from "koa";
import { postgraphile as createPostgaphileMiddleware } from "postgraphile";
import { IncomingMessage } from "http";

const log = (...args: any[]) => console.log("[super-commerce]", ...args);

async function start() {
  const app = new Koa();
  app.use(
    createPostgaphileMiddleware(
      "postgres://commerce@localhost:5432/postgres",
      "public",
      {
        graphiql: true,
        pgSettings: async (req) => {
          const { userId, isAdmin } = await getUser(req);
          return {
            "commerce.is_admin": isAdmin,
            "commerce.user_id": userId,
          };
        },
      },
    ),
  );
  app.listen(3000);
  log("server listening on 3000");
  log("visit http://localhost:3000/graphiql to play");
}

const getUser = async (req: IncomingMessage) => {
  // in a real app, you'd probably have an auth middleware,
  // which may do something like:
  // const userId = await authClient.decodeAndValidatedUser({
  //   jwt: req.headers.jwt
  // })

  // @warning - *never actually do this!*
  // for simplicty sake--let's pretend that the
  // authorized user_id is in the cookie.
  // 1 c-bear, 2 jamal, 3 jessica, 4 chaz
  const cookie = req.headers.cookie || "";
  const userId = cookie.match(/user_id=(\d+)/i)
    ? parseInt(cookie.match(/user_id=(\d+)/i)![1], 10)
    : 0;
  return {
    isAdmin: !!cookie.match(/is_admin/i),
    userId,
  };
};
start();

50 LOC, not so bad! when the server runs, it also exposes a graphiql instance, so we can play with our data!

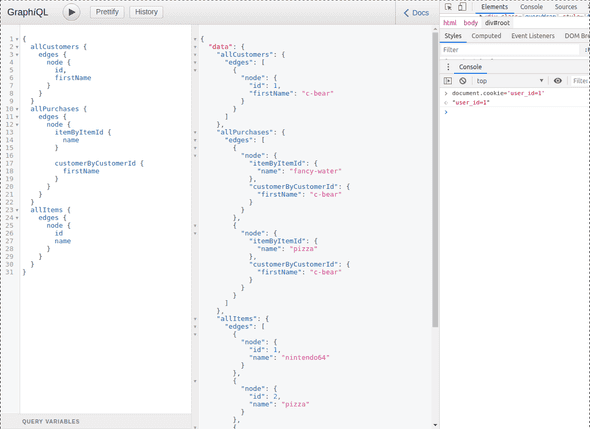

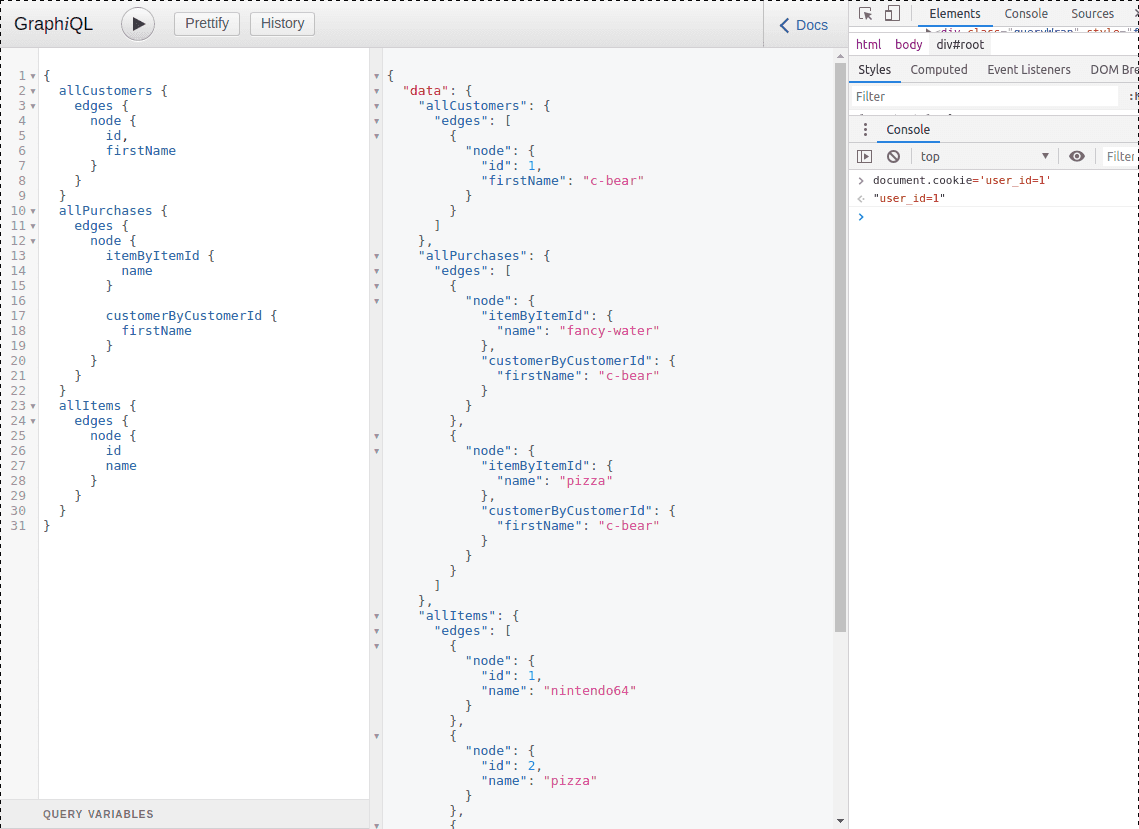

graphiql

let's play around.

prove each customer can only see his stuff

  • open http://localhost:3000/graphiql
  • in the browser dev console, set document.cookie='user_id=1' to fake authorize as c-bear
  • execute the following query:
{
  allCustomers {
    edges {
      node {
        id
        firstName
      }
    }
  }
  allPurchases {
    edges {
      node {
        itemByItemId {
          name
        }
        customerByCustomerId {
          firstName
        }
      }
    }
  }
  allItems {
    edges {
      node {
        id
        name
      }
    }
  }
}

as shown in the query results & screenshot above, it's clear that c-bear can only see his purchased pizza and fancy-water from the store.

how about trying as a different user?

  • set the user_id cookie =2, which corresponds to jamal
  • rerun the query, and observe that jamal can see his nintendo64 purchase and nothing else

prove that only admins can add purchases

in a real commerce setting, only the commerce point of sale (pos) should log a transaction. a user otherwise could log a transaction without actually paying, initiate a return, and thus steal money! let's declare that the pos system is an admin user. in practice, the pos system would probably have a reduced role.

mutation {
  createPurchase(input: { purchase: { customerId: 1, itemId: 1 } }) {
    purchase {
      id
    }
  }
}

we expect this to fail due to a rls violation. to add a purchase, we needed to be an admin. sure enough, the query shows a "new row violates row-level security policy" error message:

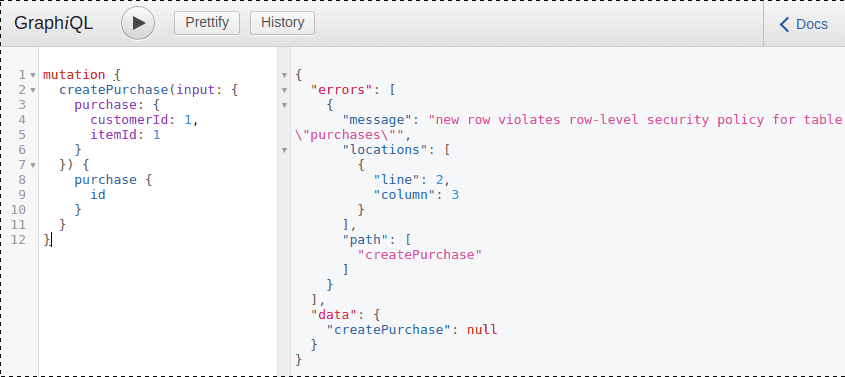

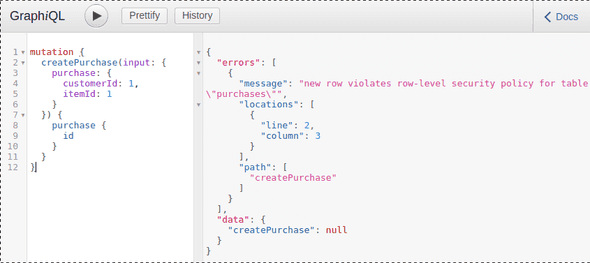

purchase rls fail
  • set document.cookie='is_admin=1'
  • run the query again, and see that it succeeds with:
{
  "data": {
    "createPurchase": {
      "purchase": {
        "id": 6
      }
    }
  }
}

assessing our app's access control

very little access control is present in our app, and that's a feature. we need to make an authc/authz call to validate our user, get her id & roles (e.g. is_admin), and pump that result directly into our db calls. this is the only flow where falible human programmers can mess up our in-database security, perhaps by passing the wrong user. such a failure is unlikely, and likely easy to rectify if a bug were to ever sprout.

summary

  • security is hard, and it's easy to mess up access controls
  • rls can help improve access control, right next to your data at rest
  • rls is easy to implement, assuming your db provider supports it
  • a compact demo of rls in action with an attached application can be download and run from super-commerce
  • some rbac concerns disappears from your application when using rls, shaving off complexity and trimming lines-of-code

try it out!

appendix

postgres auth functions

create or replace function is_admin() returns bool as $$
	begin
		if current_setting('commerce.is_admin', true) = 'true' then
			return true;
		end if;
		return false;
	end;
$$ language plpgsql stable security definer;

create function get_commerce_user_id() returns int as $$
	declare
		user_id_str varchar;
	begin
		user_id_str := current_setting('commerce.user_id', true);
		if user_id_str is null or user_id_str = '' then
			return 0; -- postgres serial ids start at 1
		end if;
		return user_id_str::int;
	end;
$$ language plpgsql stable security definer;
